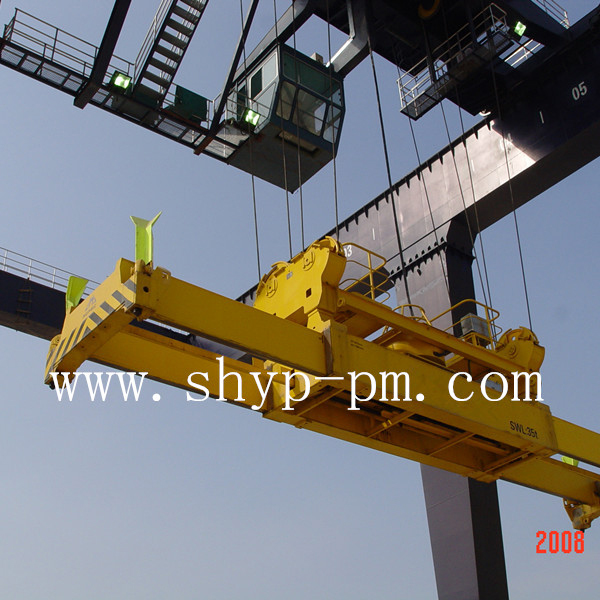

Full-automatic spreader
Short Description:

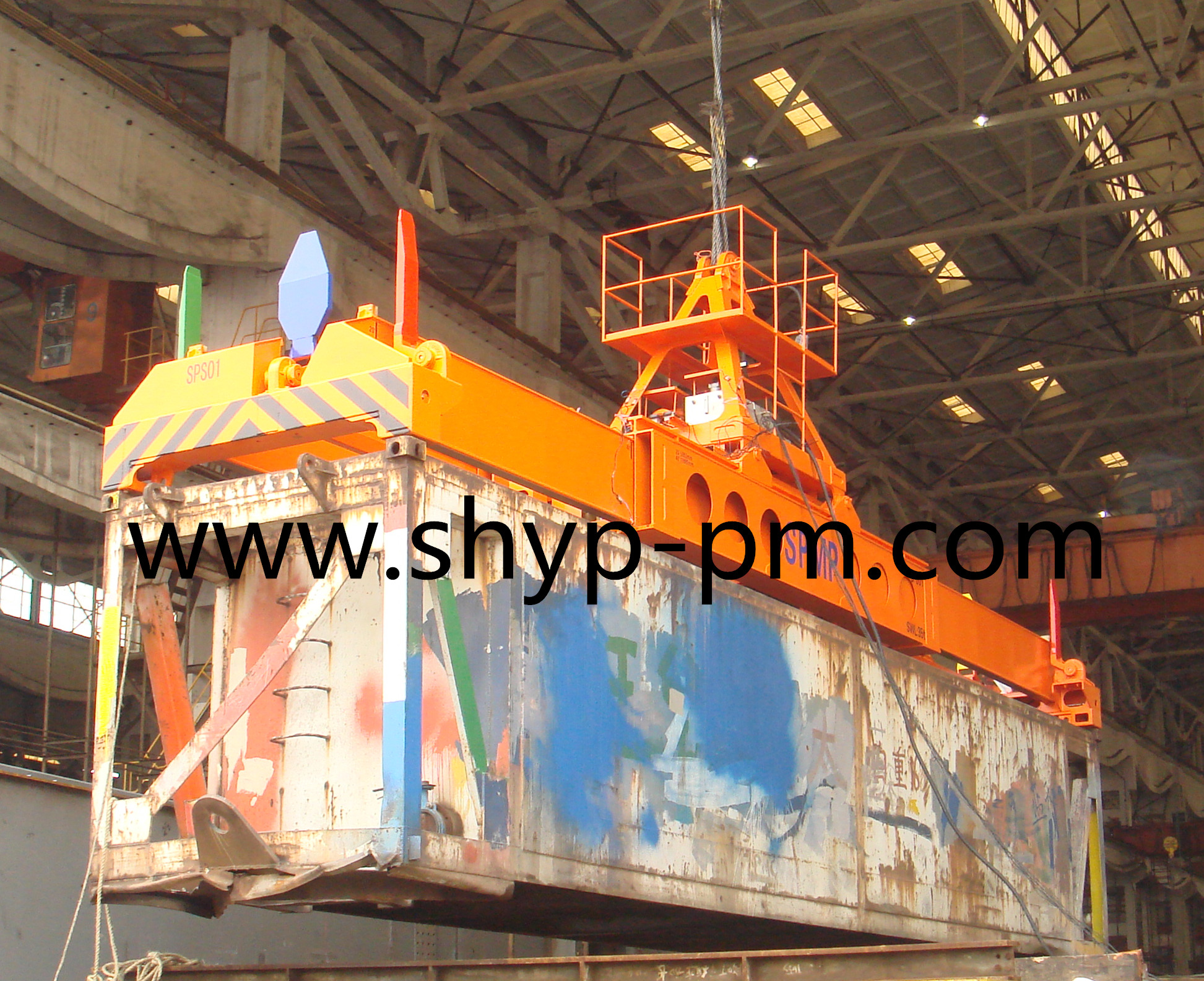

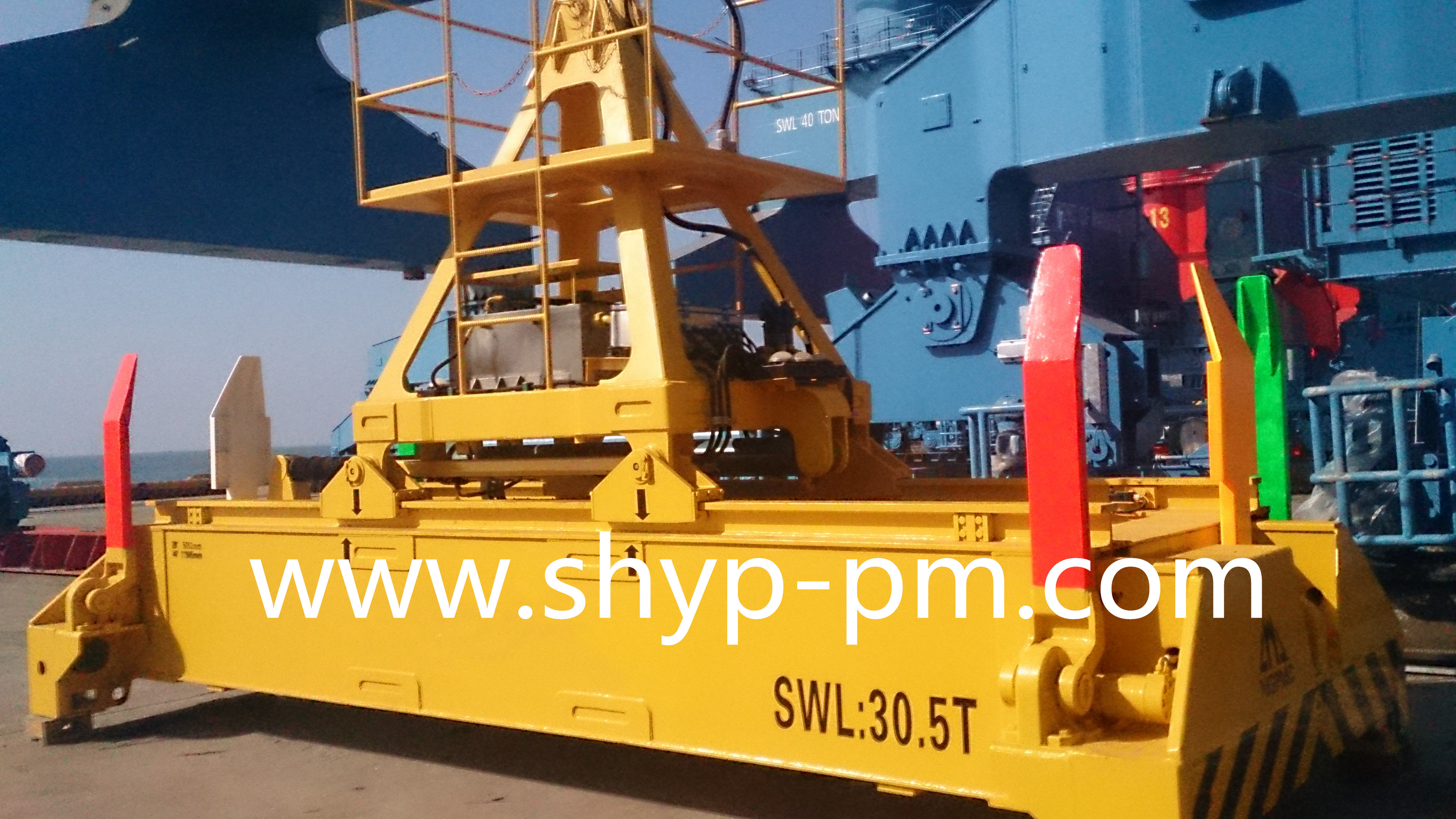

Full-automatic container spreader is suitable to sling crane which unload 20ft – 45ft container.

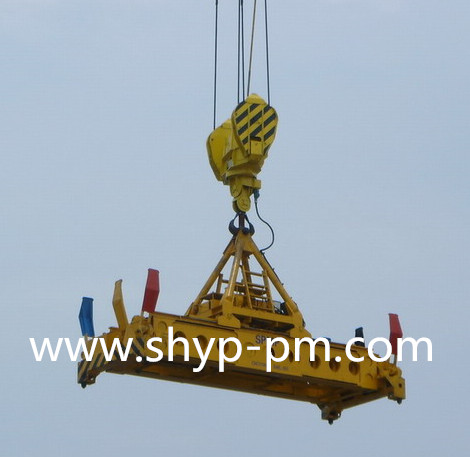

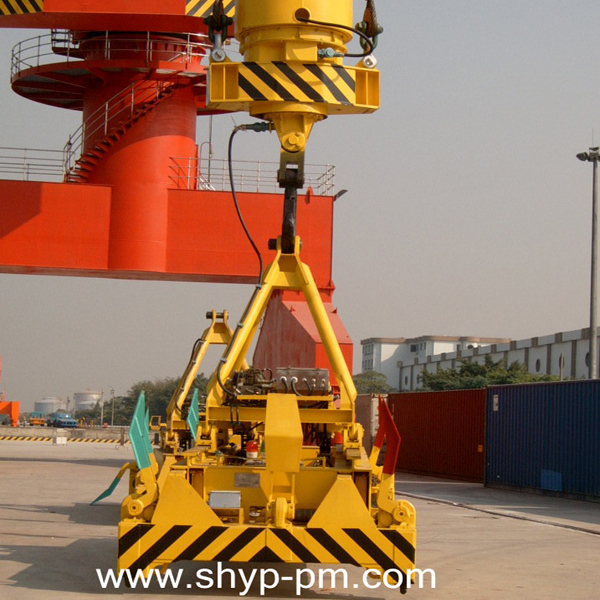

Full-Automatic container spreader is suitable the double-link portal crane or jib crane.
Hydraulic Rotating Container Spreader Specifications:
1, Suitable for 20`-45` telescopic spreader.
2, Capacity under spreader: 40.5t
3, lifting capacity of four lugs: 15t×4
4, Dead weight: ~8200± 2%
5, dead weight of rotation hook: 1400kg
6, Power: AC380V/AC440(3phase)50Hz or 60Hz, 7.5kW
7, Control Voltage: AC220V
8, IP class: IP55
9, Working Pressure: 100bar
10, Working Temperature: -10ºC~+40ºC

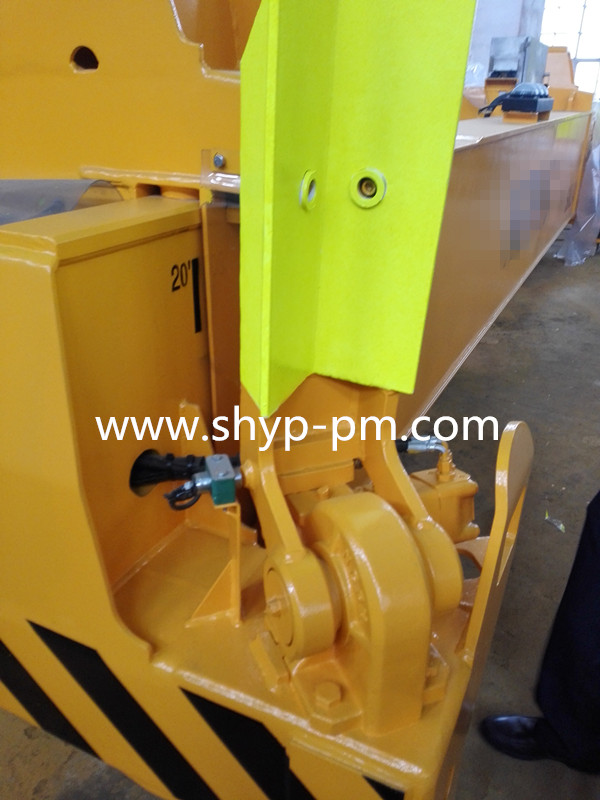

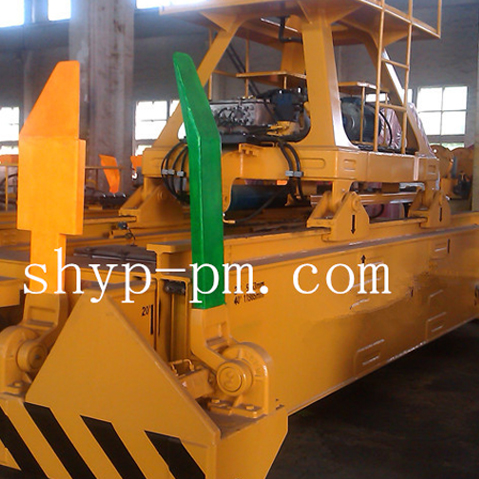

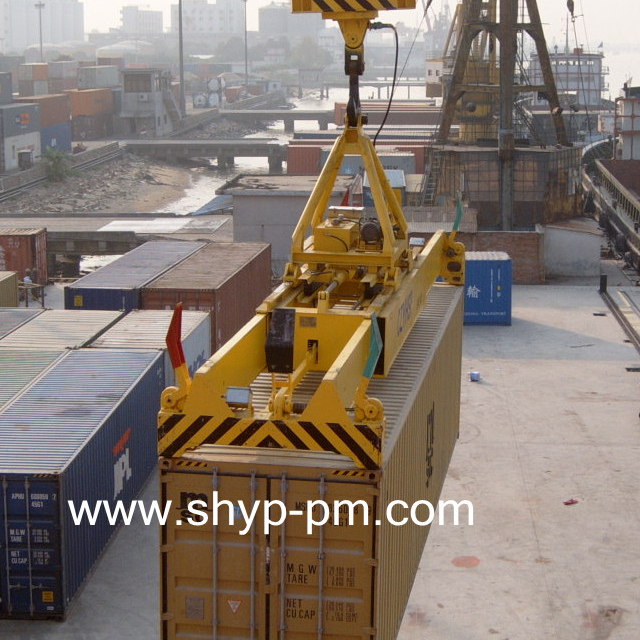

Full-automatic spreader is suitable to sling crane which unload 20ft and 40ft container. The stretch of girder, overturn of guide plate and locking of swivel pin are controlled by operator in cab.
