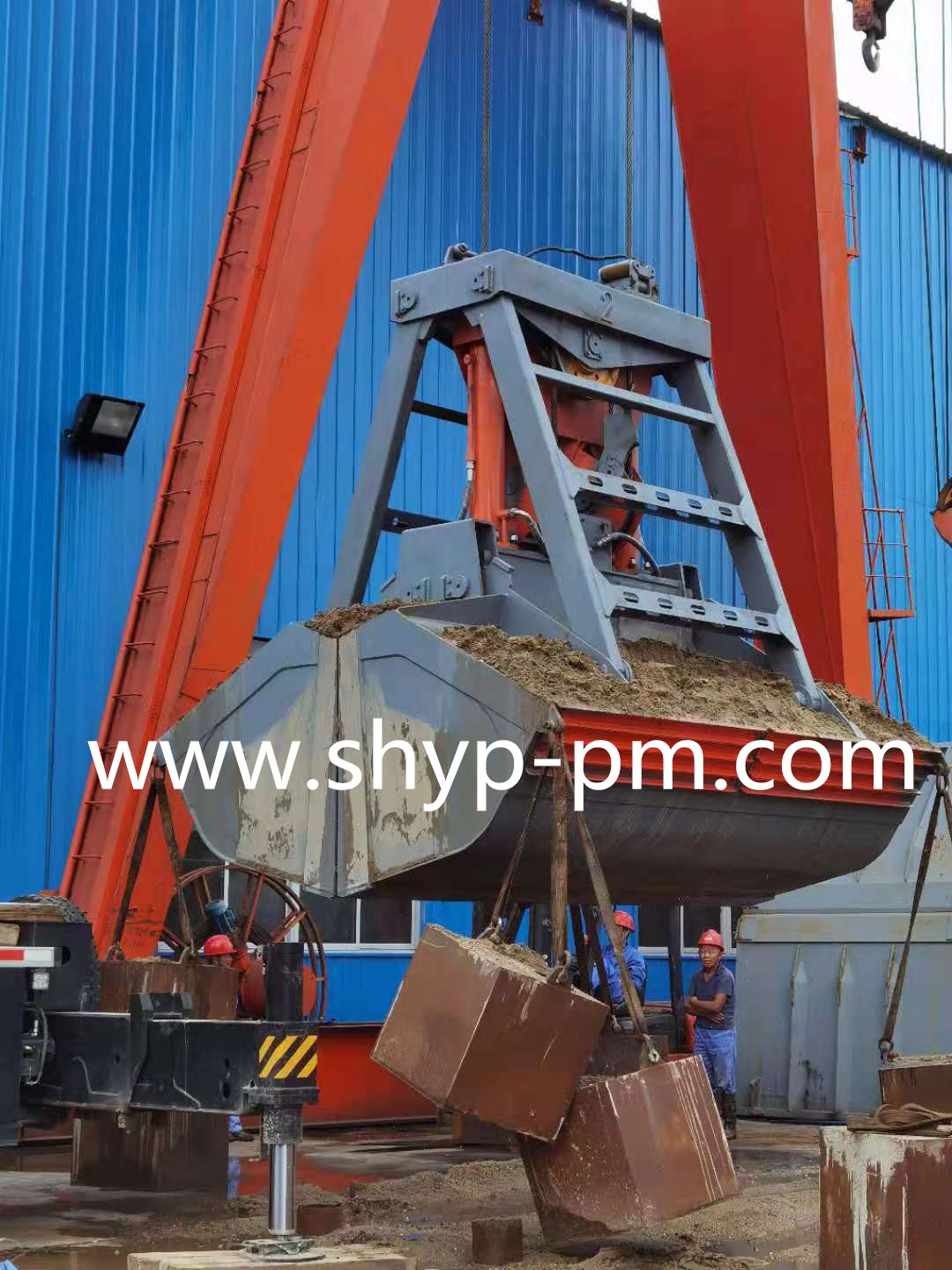

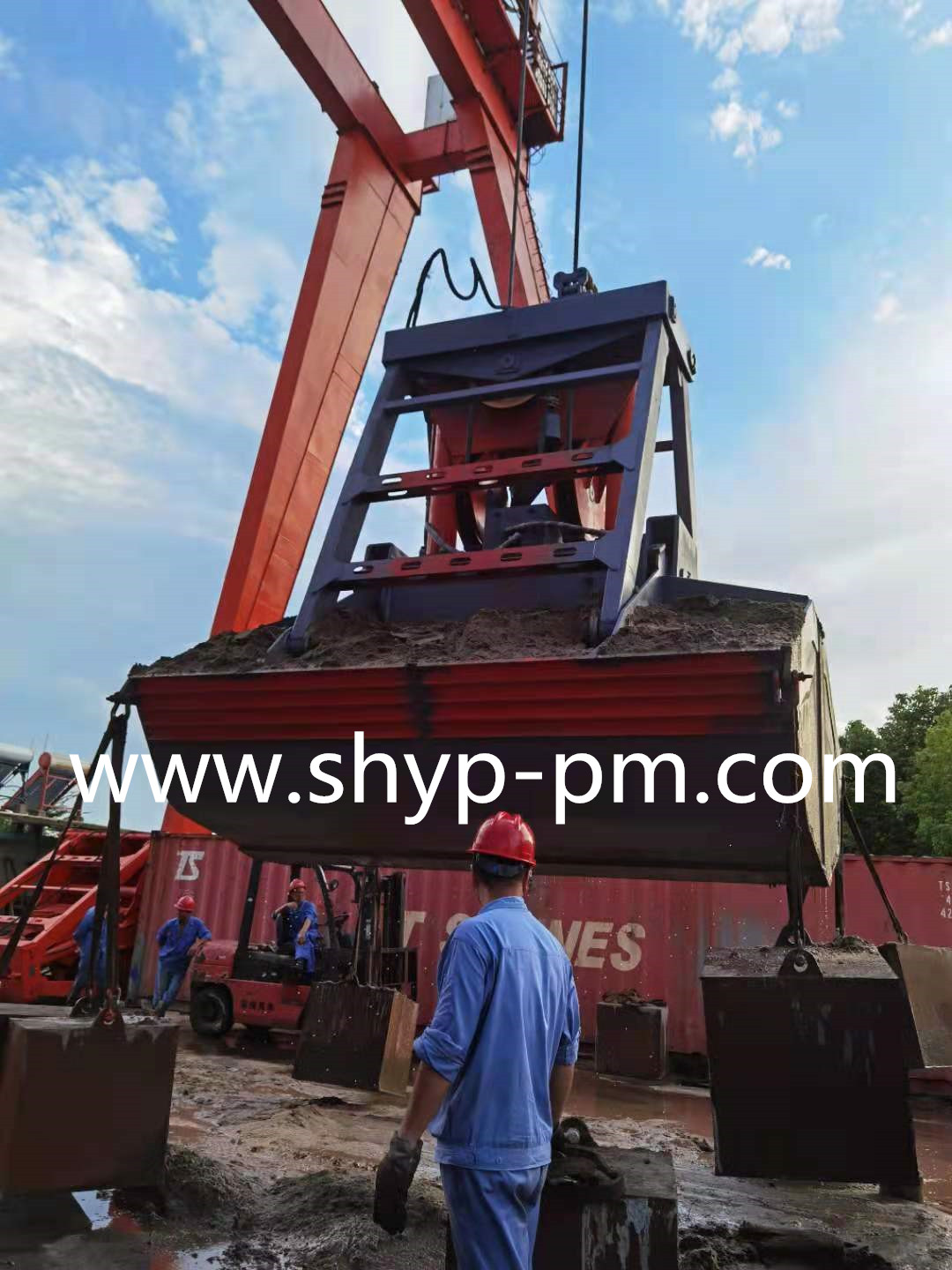

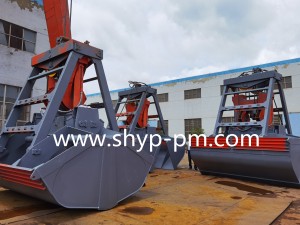

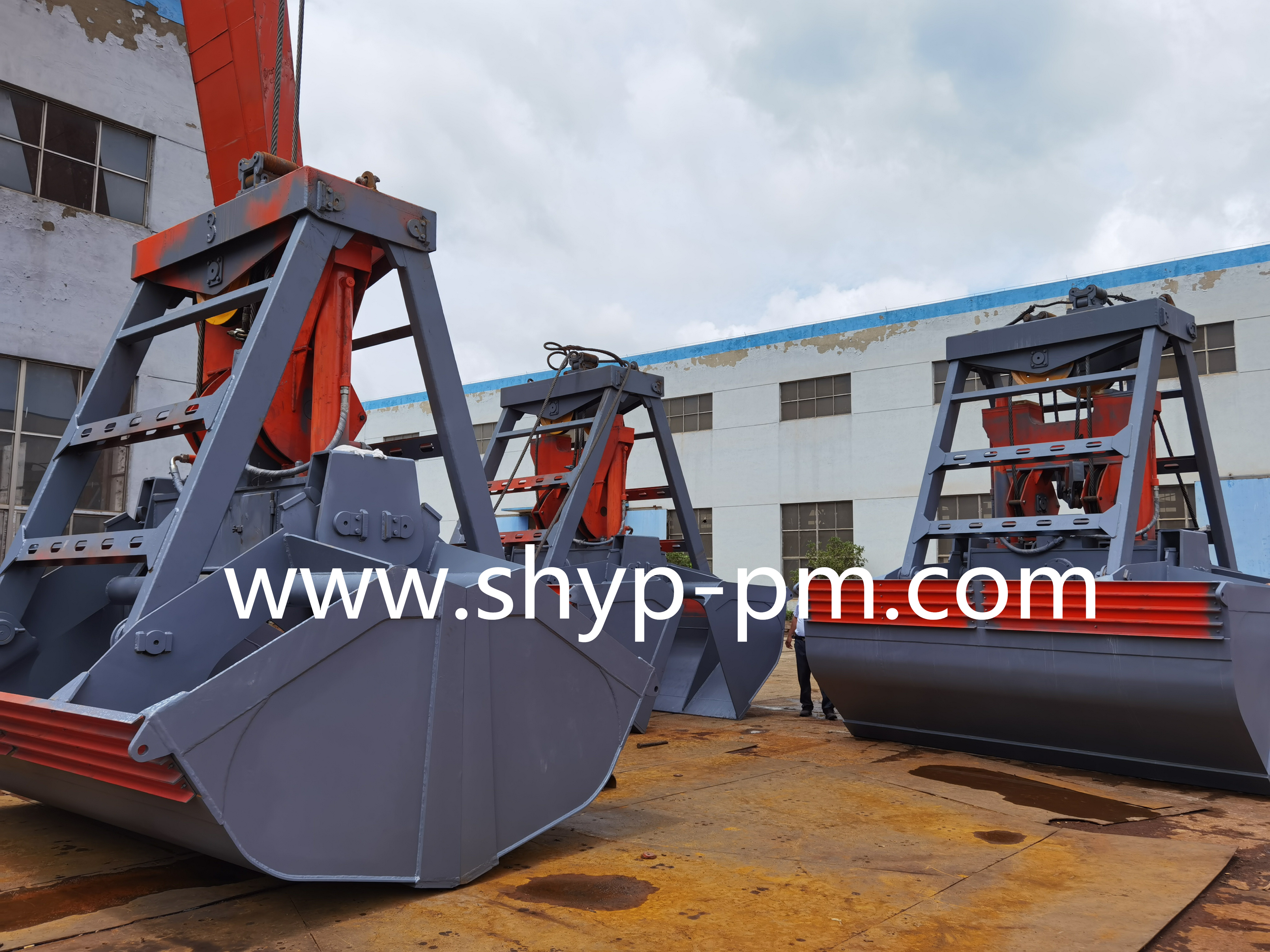

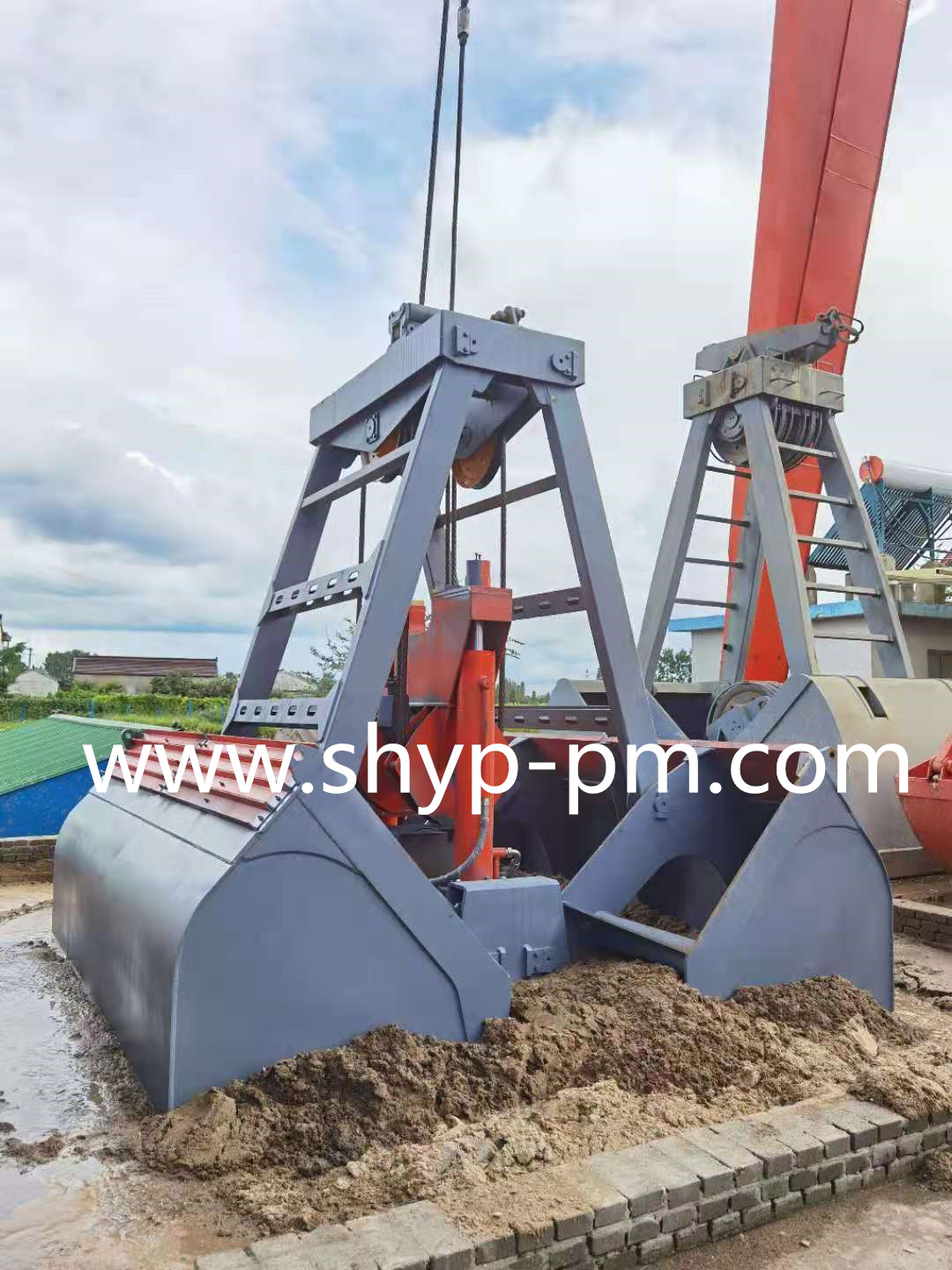

14m3 Radio Remote Control Clamshell Cargo Grab Bucket with CCS Certificate

Short Description:

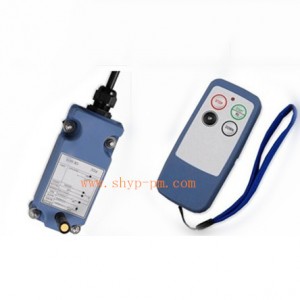

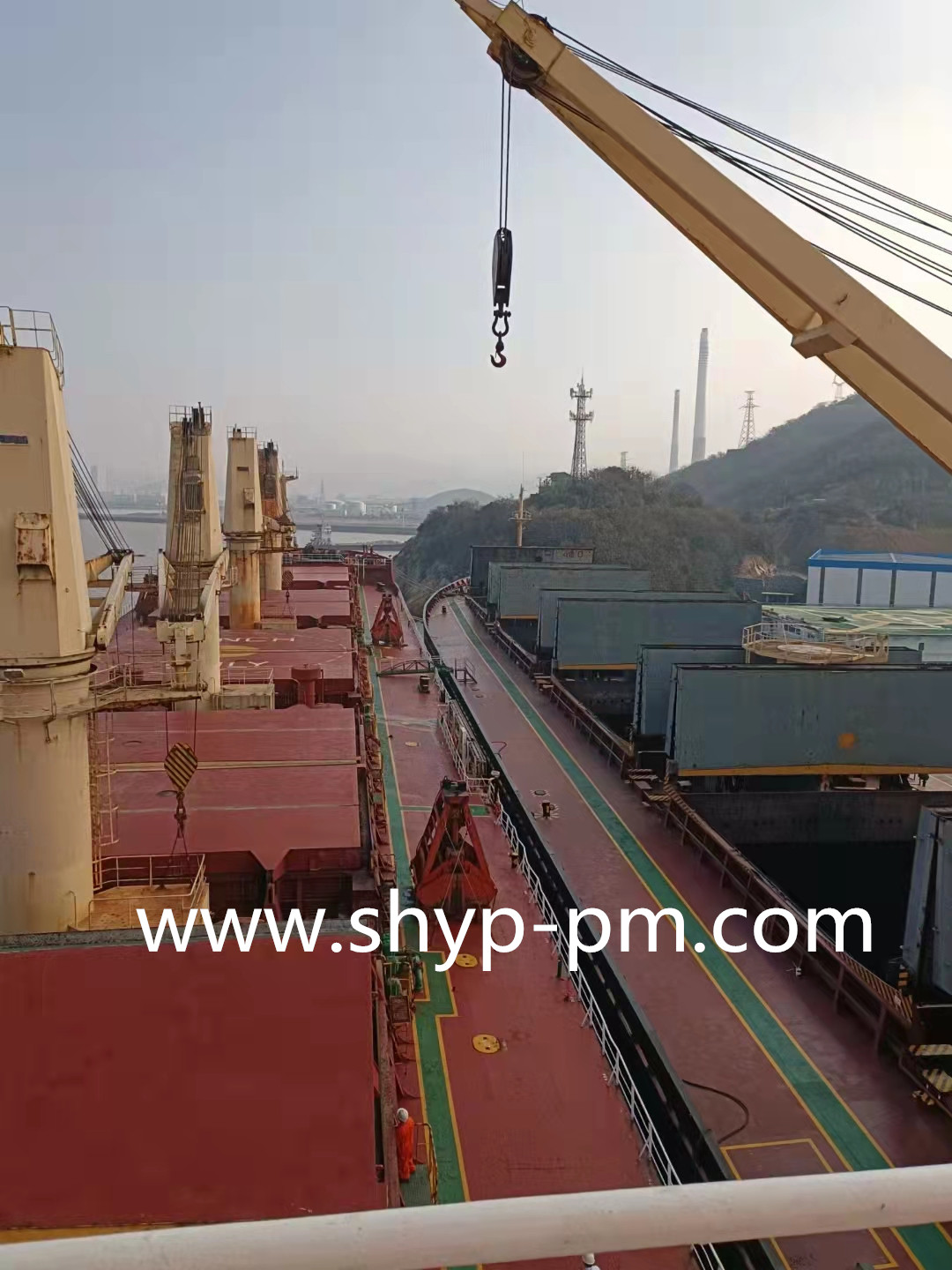

14m3 radio remote control clamshell cargo grab bucket be used for the deck crane on vessel, is a new mechanical-electrical-hydraulic single rope grab. It is a kind of efficient tool for loading and unloading all kind of cargo from coal to ores etc. Opened by wireless remote control device on air up to 100 meters affect distance, works by DC battery, receiver and hydraulic oil only. No any motor, pump and no any cable drum. It is easy to use and work under any circumstances. The lifting capacity of crane is not less 35t.

Product Detail


Product Tags

product details

Model Type:YPYK28[6-14]9.5B-00

Grab Volume:6-8-10-12-14cbm

All kick plates are fitted: 14cbm

1nd kick plate is taken out: 12cbm

2rd kick plate is taken out: 10cbm

3th kick plate is taken out: 8cbm

4th kick plate is taken out: 6cbm

Dead Weight:9800kgs(approx..)

Type of Cargo to Handle: All kind of bulk cargoes

Coal and Iron Ore(0.8~2.5t/m3)

Size of pieces up to 30mm

SWL:  For 35T Ship Crane:18.0tons

Wire Rope Diameter:32mm

Sheave Diameter:650mm

Hydraulic Cylinder Stroke:~1600mm

Grab Working height:~9.8m

Battery Voltage:DC24V

Charging Voltage :110V/220V

Remote-controlled distance:≮100m
